GNAT

40HP Screw Air Compressor

40HP Screw Air Compressor

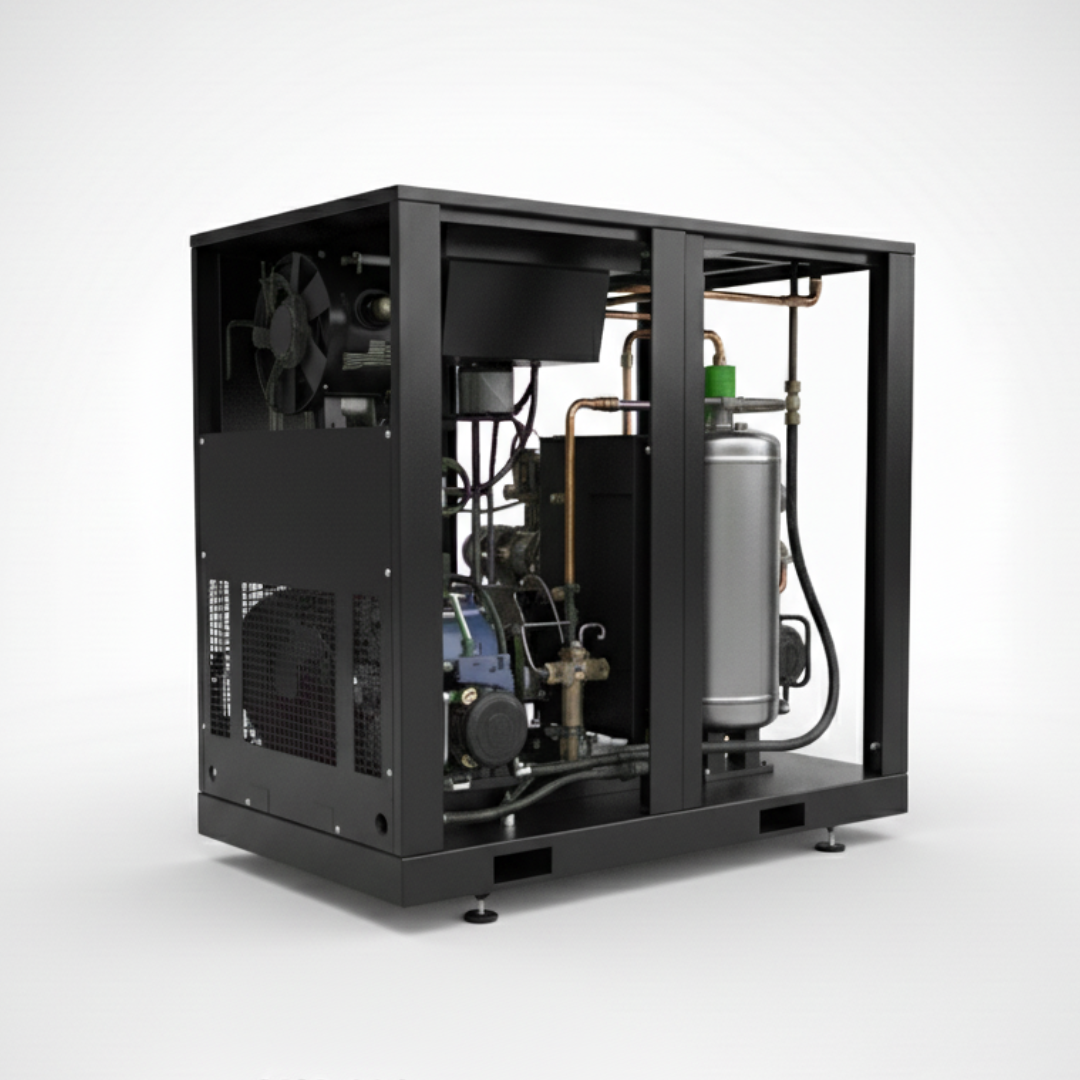

Built to perform in demanding industrial environments, the GNAT AHS-40A delivers powerful airflow and consistent pressure. Its direct drive design reduces energy loss, offering cost-effective operation.

Features:

  • Air flow up to 5.0 m³/min
  • Pressure range: 0.8 – 1.2 MPa
  • Heavy-duty motor for continuous use
  • High-efficiency cooling and filtration system

Ideal for construction sites, production units, and heavy machinery operations.

Specifications:

Model AHS-40A
Power (kW) 30
Power (HP) 40
Air Flow (m³/min) 5.00 / 4.50 / 4.00
Pressure (MPa) 0.8 / 1.0 / 1.2
Drive Method Direct drive
Voltage/Frequency (V/Hz) 415/50 (Customize accepted)
Dimension (mm) 1200*820*1135
Weight (Kg) 566
Pipe Diameter (inch) 1¼"
