GNAT

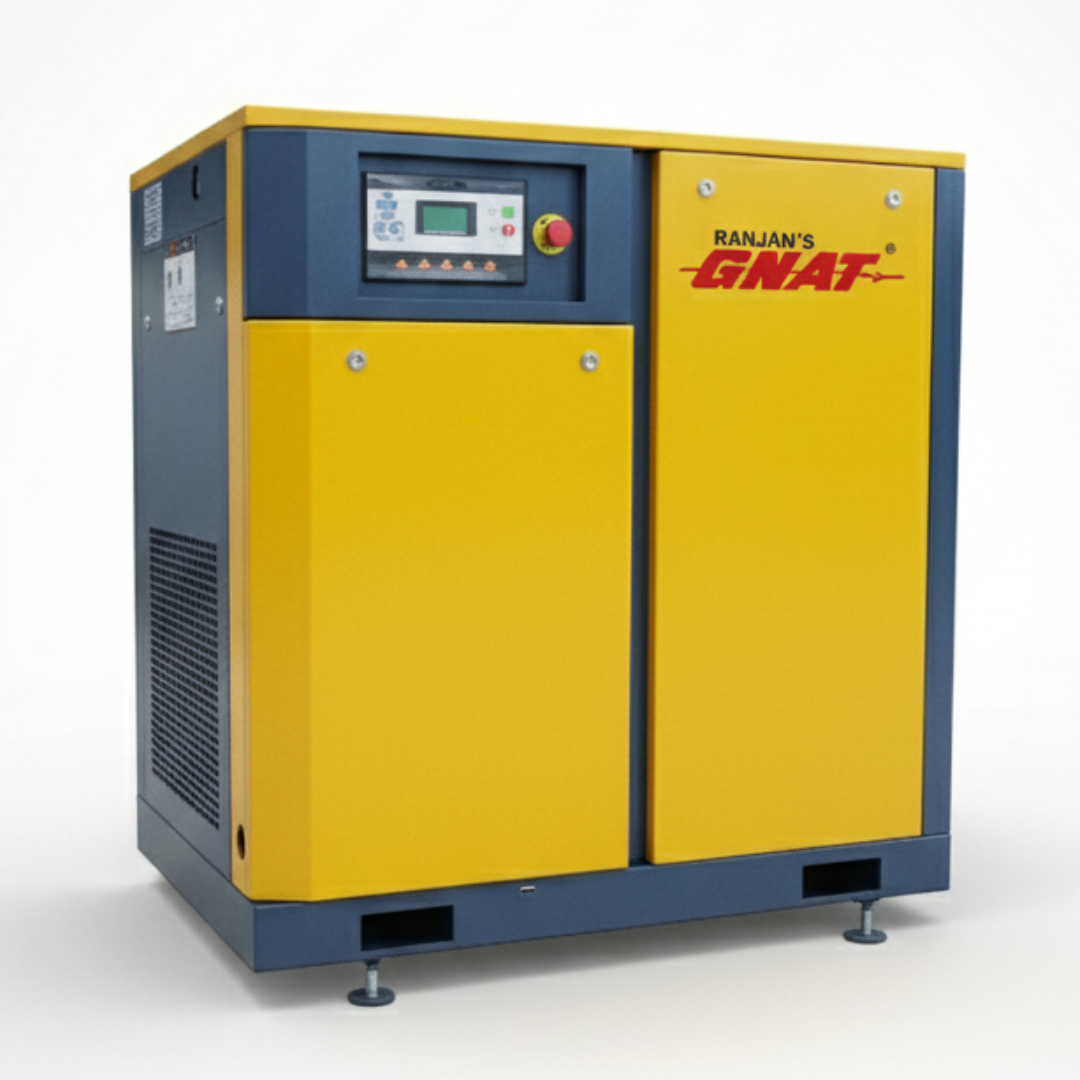

10 HP Screw Air Compressor

10 HP Screw Air Compressor

The GNAT AHS-10A is a compact and efficient screw air compressor designed for small-scale industries and workshops. With an air flow of up to 1.1 m³/min and pressure options from 0.8 to 1.2 MPa, it delivers consistent performance for continuous use.

Features:

  • Belt-driven design for smooth operation and easy maintenance
  • Energy-efficient motor with reliable 415V/50Hz power system
  • Compact size ideal for limited spaces
  • Built for durability and long working life

Best suited for small workshops, garages, and light industrial applications.

Specifications:

Model AHS-10A
Power (kW) 7.5
Power (HP) 10
Air Flow (m³/min) 1.10 / 0.90 / 0.80
Pressure (MPa) 0.8 / 1.0 / 1.2
Drive Method Belt drive
Voltage/Frequency (V/Hz) 415/50 (Customize accepted)
Dimension (mm) 800*650*880
Weight (Kg) 223
Pipe Diameter (inch) 3/4"
